Standard:
ASTM A500 Grade B, ASTM A513 (1020-1026) ASTM A36 (A36)
EN 10210:S235,S355,S235JRH,
S355J2H,S355NH
EN 10219:S235,S355,S235JRH,
S275J0H, S275J2H, S355J0H, S355J2
Surface conditions:
Hot rolled
Cold rolled

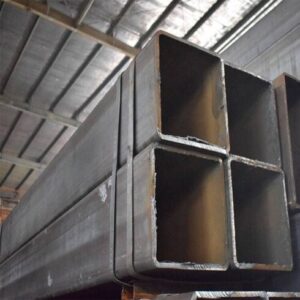

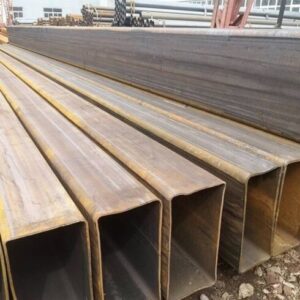

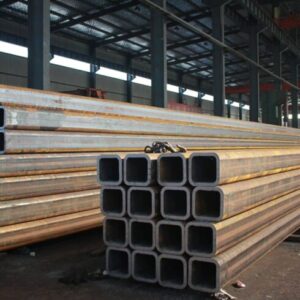

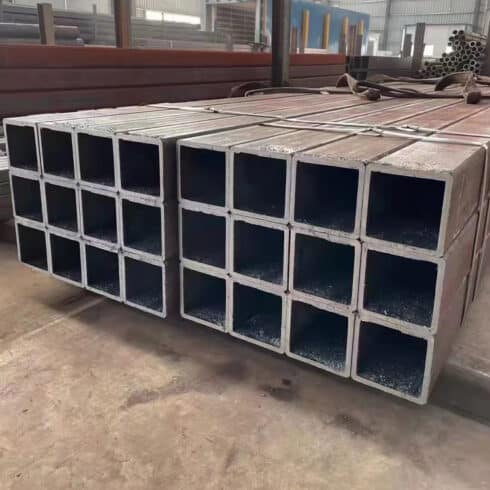

Ms Square tube sizes(It can be customized according to customer requirements)
Size byInch (diameter) | Thickness | Sizes byMM (diameter) | Thickness |
inch | inch | mm | mm |
1/2″ x 1/2″ | 0.065″ | 16mm×16mm | 0.4mm~1.5mm |
3/4″ x 3/4″ | 0.049″ | 18mm×18mm | 0.4mm~1.5mm |
0.065″ | 20mm×20mm | 0.4mm~3mm | |
0.083″ | 22mm×22mm | 0.4mm~3mm | |
0.120″ | 25mm×25mm | 0.6mm~3mm | |
1″ x 1″ | 0.049″ | 30mm×30mm | 0.6mm~4mm |
0.058″ | 32mm×32mm | 0.6mm~4mm | |
0.065″ | 34mm×34mm | 1mm~2mm | |
0.072″ | 35mm×35mm | 1mm~4mm | |
0.083″ | 38mm×38mm | 1mm~4mm | |
0.095″ | 40mm×40mm | 1mm~4.5mm | |
0.109″ | 44mm×44mm | 1mm~4.5mm | |
0.120″ | 45mm×45mm | 1mm~5mm | |
1 1/8″ x 1 1/8″ | 0.035″ | 50mm×50mm | 1mm~5mm |
0.049″ | 52mm×52mm | 1mm~5mm | |
0.065″ | 60mm×60mm | 1mm~5mm | |
0.109″ | 70mm×70mm | 2mm~6mm | |
0.120″ | 75mm×75mm | 2mm~6mm | |
1 1/4″ x 1 1/4″ | 0.049″ | 76mm×76mm | 2mm~6mm |
0.065″ | 80mm×80mm | 2mm~8mm | |
0.072″ | 85mm×85mm | 2mm~8mm | |
0.083″ | 90mm×90mm | 2mm~8mm | |
0.109″ | 95mm×95mm | 2mm~8mm | |
0.120″ | 100mm×100mm | 2mm~8mm | |
0.135″ | 120mm×120mm | 4mm~8mm | |
0.156″ | 125mm×125mm | 4mm~8mm | |
0.188″ | 130mm×130mm | 4mm~8mm | |
1 1/2″ x 1 1/2″ | 0.049″ | 140mm×140mm | 6mm~10mm |
0.065″ | 150mm×150mm | 6mm~10mm | |
0.072″ | 160mm×160mm | 6mm~10mm | |
0.083″ | 180mm×180mm | 6mm~12mm | |
0.109″ | 200mm×200mm | 6mm~30mm | |
0.120″ | 220mm×220mm | 6mm~30mm | |
0.140″ | 250mm×250mm | 6mm~30mm | |
0.188″ | 270mm×270mm | 6mm~30mm | |
0.250″ | 280mm×280mm | 6mm~30mm | |
1 3/4″ x 1 3/4″ | 0.065″ | 300mm×300mm | 8mm~30mm |
0.083″ | 320mm×320mm | 8mm~30mm | |
0.095″ | 350mm×350mm | 8mm~30mm | |
0.109″ | 380mm×380mm | 8mm~30mm | |
0.120″ | 400mm×400mm | 8mm~30mm | |
0.188″ | 420mm×420mm | 10mm~30mm | |
2″ x 2″ | 0.049″ | 450mm×450mm | 10mm~30mm |
0.065″ | 480mm×480mm | 10mm~30mm | |
0.083″ | 500mm×500mm | 10mm~30mm | |
0.109″ | 550mm×550mm | 10mm~40mm | |
0.120″ | 600mm×600mm | 10mm~40mm | |
0.145″ | 700mm×700mm | 10mm~40mm | |
0.165″ | 800mm×800mm | 10mm~50mm | |
0.188″ | 900mm×900mm | 10mm~50mm | |
0.250″ | 1000mm×1000mm | 10mm~50mm | |
0.312″ | |||
2 1/4″ x 2 1/4″ | 0.188″ | ||
0.250″ | |||
2 1/2″ x 2 1/2″ | 0.083″ | ||
0.109″ | |||
0.120″ | |||
0.188″ | |||
0.250″ | |||
0.312″ |
3″ x 3″ | 0.083″ |
0.120″ | |
0.188″ | |
0.250″ | |
0.312″ | |
0.375″ | |
3 1/2″ x 3 1/2″ | 0.120″ |
0.188″ | |
0.250″ | |
0.312″ | |
0.375″ | |
4″ x 4″ | 0.083″ |
0.120″ | |
0.156″ | |
0.188″ | |
0.250″ | |
0.312″ | |
0.375″ | |
0.500″ |
4 1/2″ x 4 1/2″ | 0.188″ |
0.250″ | |
0.312″ | |
0.375″ | |
5″ x 5″ | 0.188″ |
0.250″ | |
0.312″ | |
0.375″ | |
0.500″ | |
6″ x 6″ | 0.188″ |
0.250″ | |
0.312″ | |
0.375″ | |
0.500″ | |
0.625″ | |
7″ x 7″ | 0.188″ |
0.250″ | |
0.312″ | |
0.375″ | |
0.500″ | |
0.625″ |
8″ x 8″ | 0.188″ |
0.250″ | |
0.312″ | |
0.375″ | |
0.500″ | |
0.625″ | |
9″ x 9″ | 0.188″ |
0.250″ | |
0.312″ | |
0.375″ | |
0.500″ | |
0.625″ | |
10″ x 10″ | 0.188″ |
0.250″ | |
0.312″ | |
0.375″ | |
0.500″ | |
0.625″ | |
12″ x 12″ | 0.250″ |
0.312″ | |
0.375″ | |
0.500″ | |
0.625″ | |
14″ x 14″ | 0.312″ |
0.375″ | |
0.500″ | |
0.625″ | |
16″ x 16″ | 0.312″ |
0.375″ | |
0.500″ | |
0.625″ |
Chemical composition of material
Grade | element | C | Mn | P | S |
ASTM A500 Gr.b | % | 0.05%-0.23% | 0.3%-0.6% | 0.04% | 0.04% |
Acc.to EN10027/1 | Acc.to EN10027/2 | C% max (Norminal W.T.(mm) | Si% max | Mn% max | P% max | S% max | N% max | |
and IC 10 | ≤ 40 | |||||||
S235JRH | 1.0039 | 0.17 | 0.20 | – | 1.40 | 0.045 | 0.045 | 0.009 |
S275JOH | 1.0149 | 0.20 | 0.22 | – | 1.50 | 0.040 | 0.040 | 0.009 |
S275J2H | 1.0138 | 0.20 | 0.22 | – | 1.50 | 0.035 | 0.035 | – |
S355JOH | 1.0547 | 0.22 | 0.22 | 0.55 | 1.60 | 0.040 | 0.040 | 0.009 |
S355J2H | 1.0576 | 0.22 | 0.22 | 0.55 | 1.60 | 0.035 | 0.035 | – |
Mechanical properties of material
Grade | Yield Strength | Tensile Strength | Elongation |
A500.Gr.b | 46 ksi | 58 ksi | 23% |
A513.GR.B | 72 ksi | 87 ksi | 10% |
Norm | Yield Strength | Tensile Strength | Min.elogation | Min.percent properties | ||||||||
Acc.to EN10027/1
and IC 10 |
Acc.to EN10027/2 | Norminal W.T.mm | Norminal W.T.mm | Longit. | Cross | Test temperature°C | Average min.impact value | |||||
≤16 | >6 | >40 | <3 | ≤3≤65 | Norminal W.T.mm | |||||||
≤65 | ≤65 | ≤40 | >40 | >40 | ≤65 | |||||||
≤65 | ≤40 | |||||||||||
S253JRH | 1.0039 | 235 | 225 | 215 | 360-510 | 340-470 | 26 | 25 | 24 | 23 | 20 | 27 |
S275JOH | 1.0149 | 275 | 265 | 255 | 410-580 | 410-560 | 22 | 21 | 20 | 19 | 0 | 27 |
S275J2H | 1.0138 | 275 | 265 | 255 | 430-560 | 410-560 | 22 | 21 | 20 | 19 | -20 | 27 |
S355JOH | 1.0547 | 355 | 345 | 335 | 510-680 | 490-630 | 22 | 21 | 20 | 19 | 0 | 27 |
S355J2H | 1.0576 | 355 | 345 | 335 | 510-680 | 490-630 | 22 | 21 | 20 | 19 | -20 | 27 |
Equivalent specfications
EN 10210-1 | NF A 49501 NF A 35501 | DIN 17100 DIN 17123/4/5 | BS 4360 | UNI 7806 |
S235JRH | E 24-2 | St 37.2 | – | Fe 360 B |
S275JOH | E 28-3 | St 44.3 U | 43 C | Fe 430 C |
S275J2H | E 28-4 | St 44.3 N | 43 D | Fe 430 D |
S355JOH | E 36-3 | St 52.3 U | 50 C | Fe 510 C |
S355J2H | E 36-4 | St 52.3 N | 50 D | Fe 510 D |
S275NH | – | St E 285 N | – | – |
S275NLH | – | TSt E 285 N | 43 EE | – |
S355NH | E 355 R | St E 355 N | – | – |
S355NLH | – | TSt E 355 N | 50 EE | – |
S460NH | E 460 R | St E 460 N | – | – |
S460NLH | – | TSt E 460 N | 55 EE | – |
– block letter “S” means “STEEL FOR STRUCTURAL APPLICATIONS”
– the next fi gure means the minim. yield value required for wall thickness ≤16 mm
– “J2” means impact test value -20° C min. 27 joule
– block letter “H” means “HOLLOW SECTION”.
